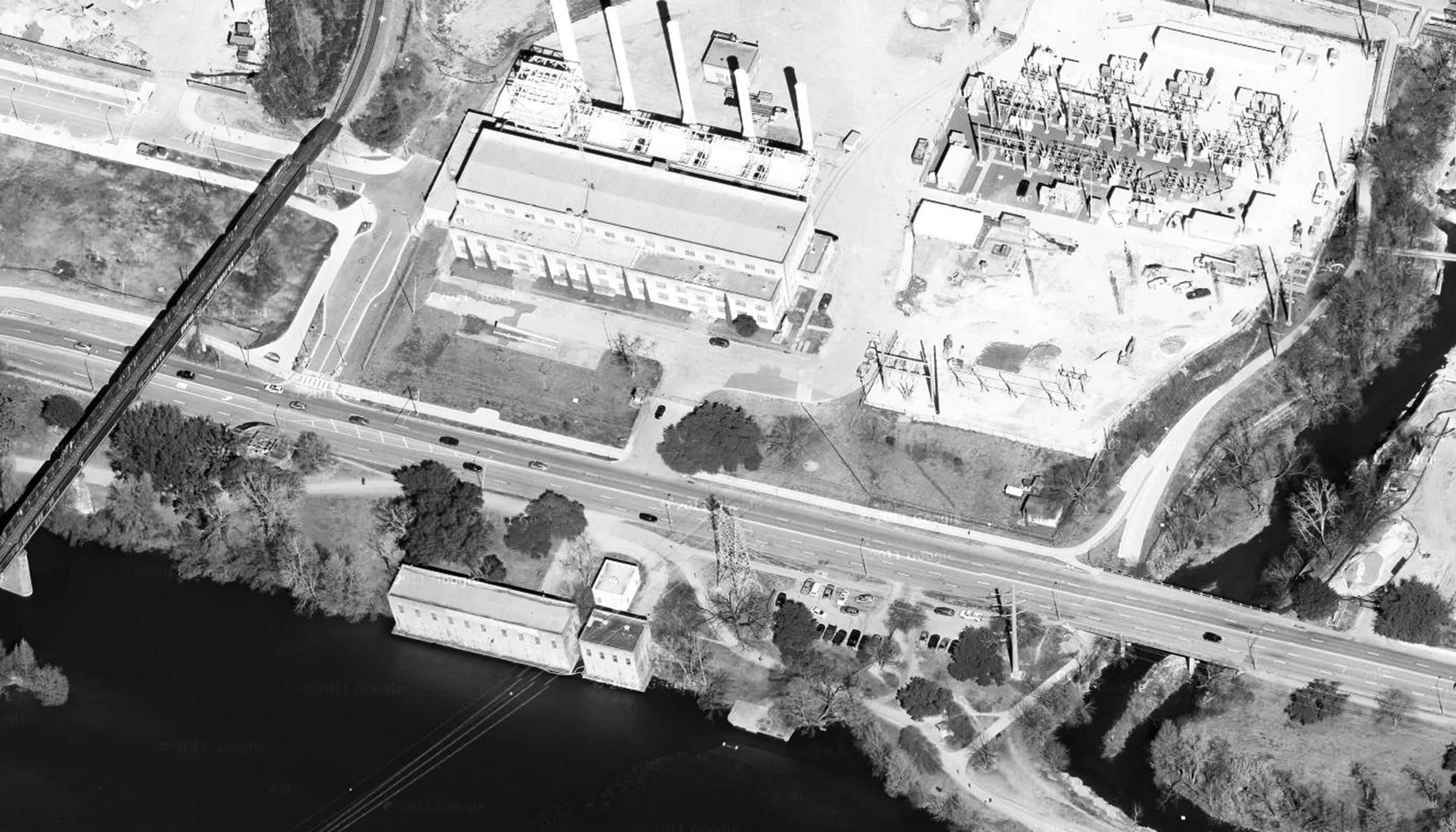

 Existing Site -- Seaholm Power Plant and Intake Buildings along Lady Bird Lake.

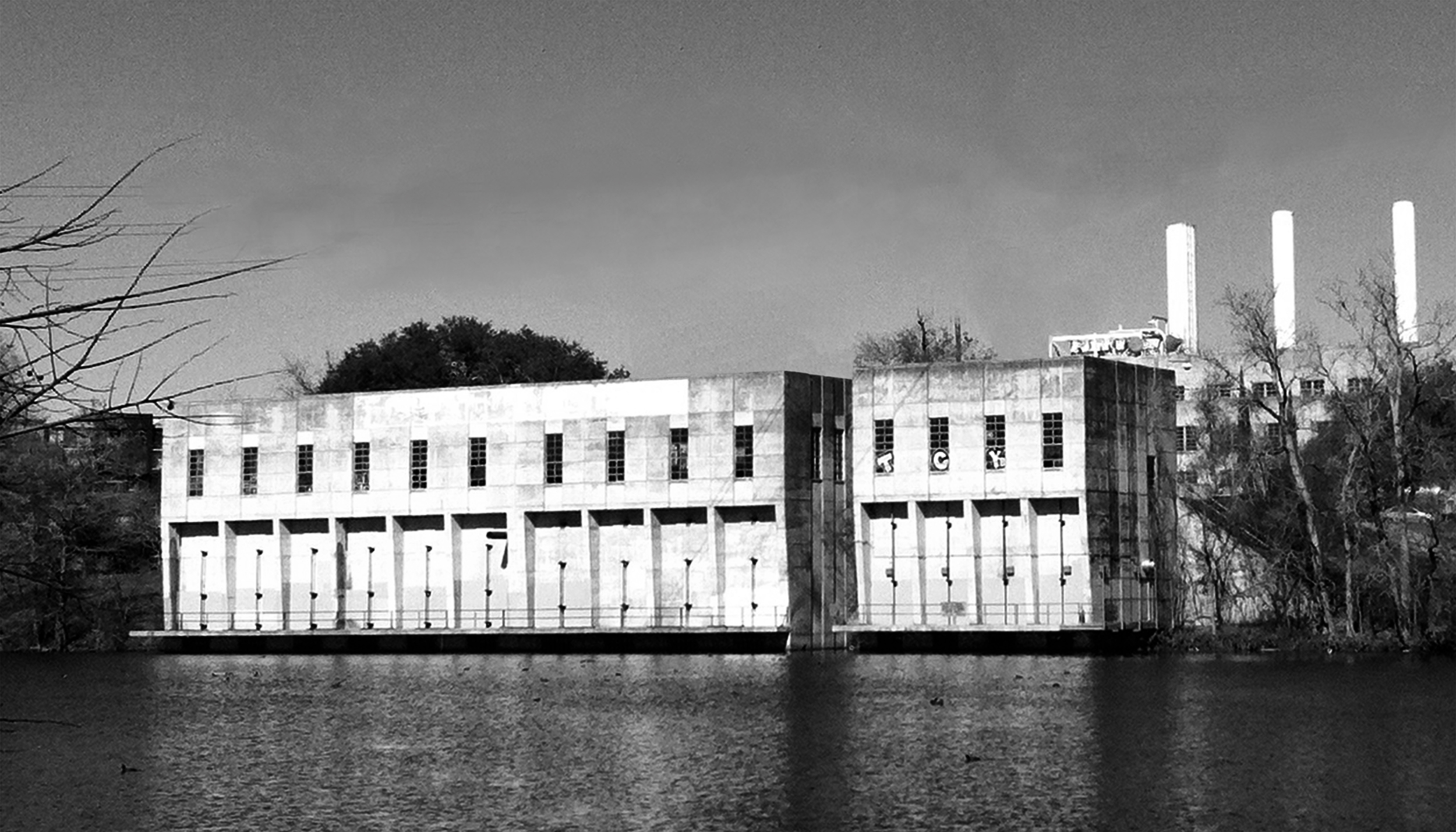

 Existing condition of decommissioned Intake Building along Lady Bird Lake.

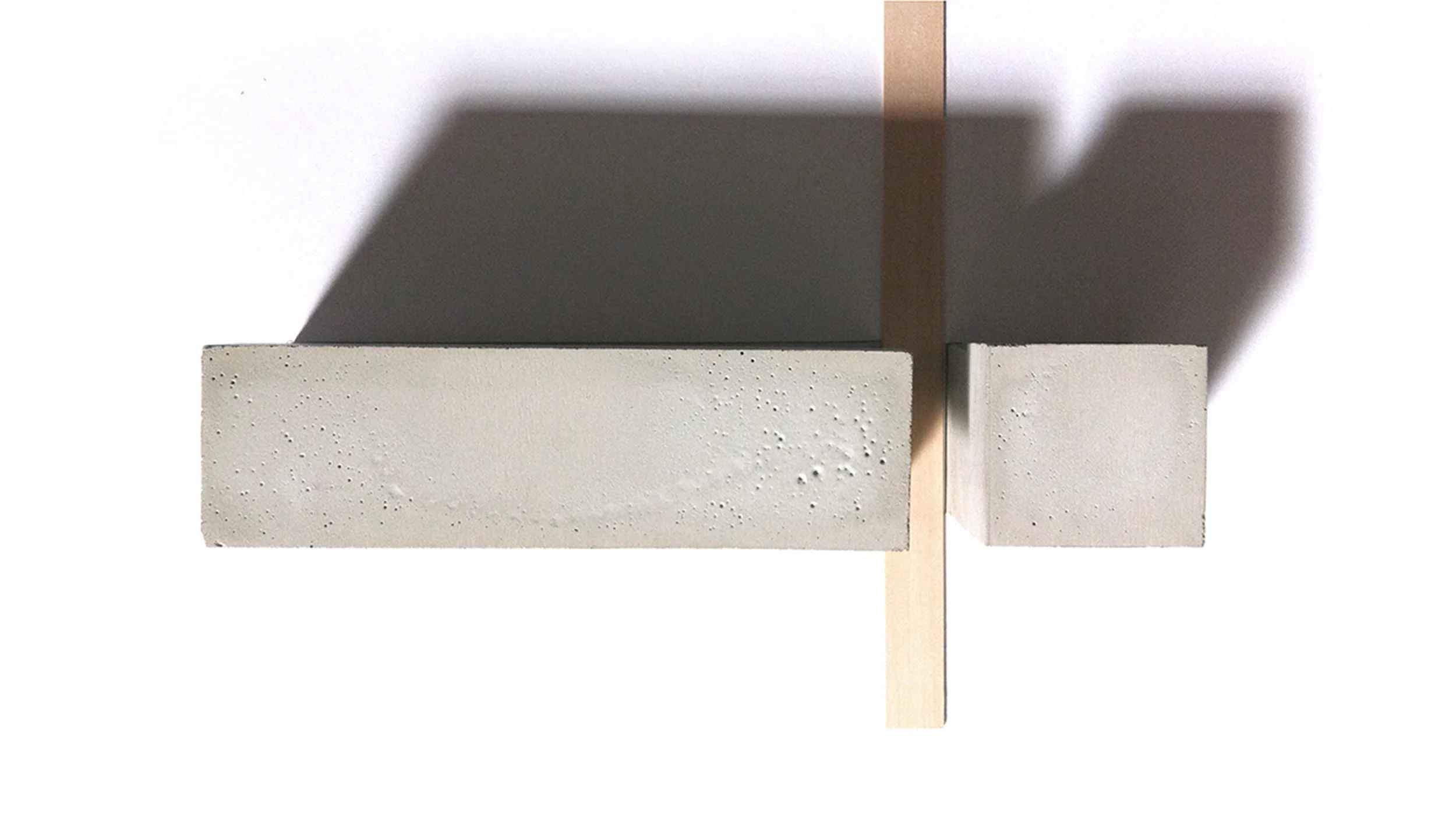

 Study model -- exploiting the gap.
 The strata of local limestone inspires the formal strategy of the terracing public plaza spaces. Visitors act as elements of erosion as they descend under Cesar Chavez Blvd. down steps and along patios, through the adapted Intake Buildings and arrive at the cove dock.
 SITE PLAN
 Terracing strategy becomes public plaza space.
 New plaza as a corridor to the lake shore.
 Plaza and steps act as a social condenser.
 Model
 DOCK  +  COVE
 Cove-like dock reaches out and welcomes kayakers.
 THIRD LEVEL PLAN
 SECOND LEVEL PLAN
 LAKE LEVEL PLAN

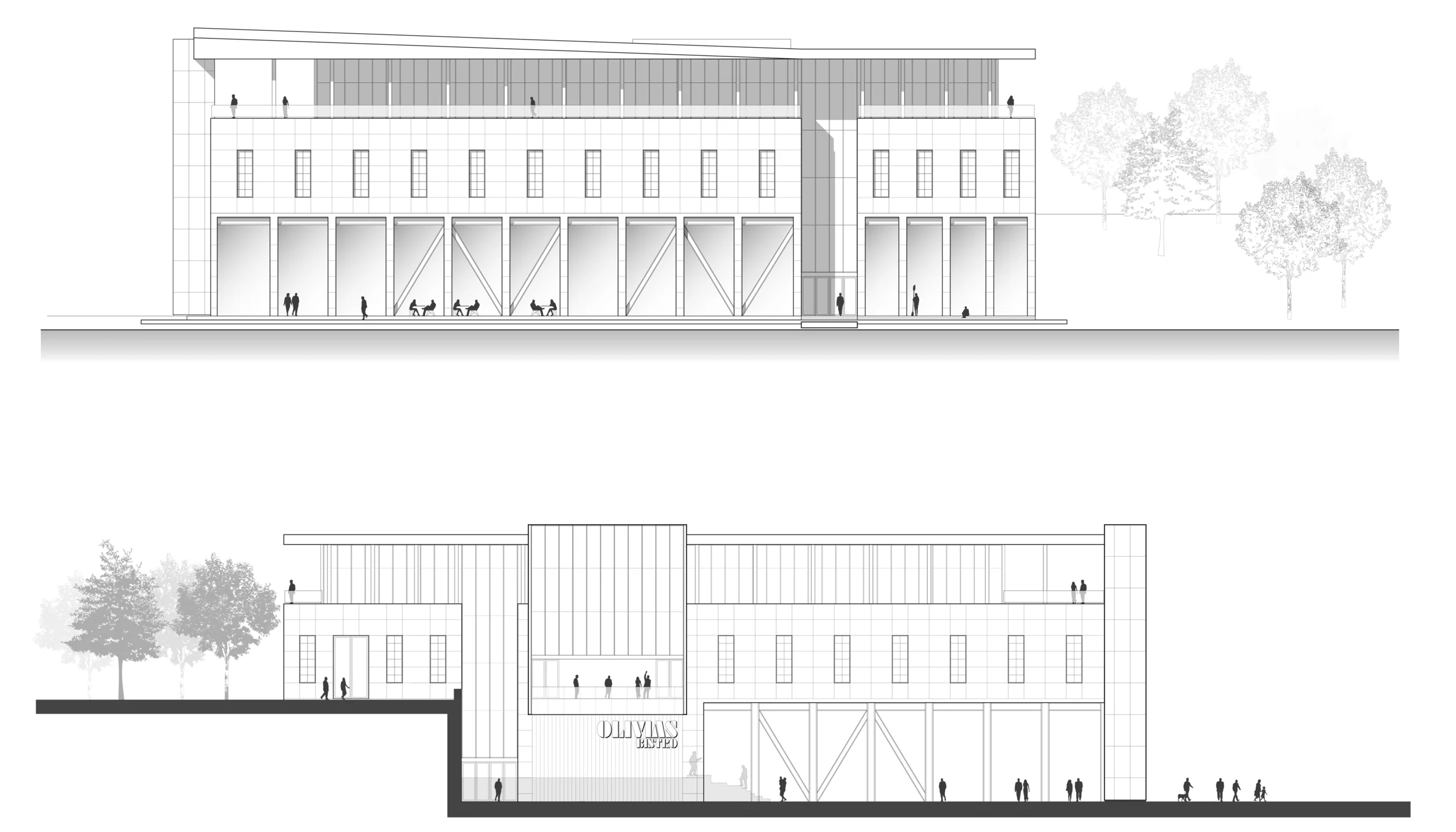

 ELEVATIONS

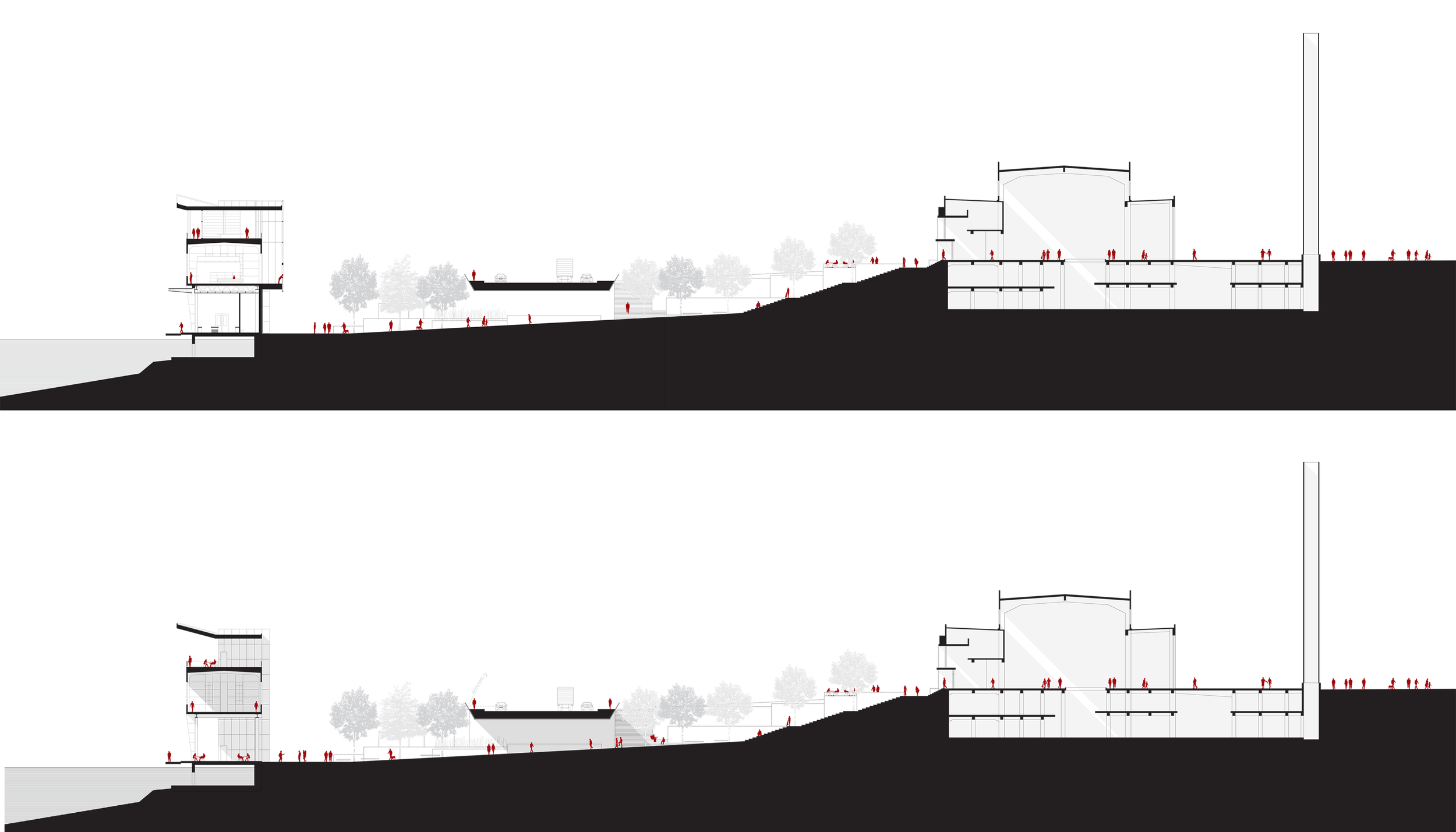

 LONG SECTIONS
 EXPLODED AXONOMETRIC
 TECTONICS
